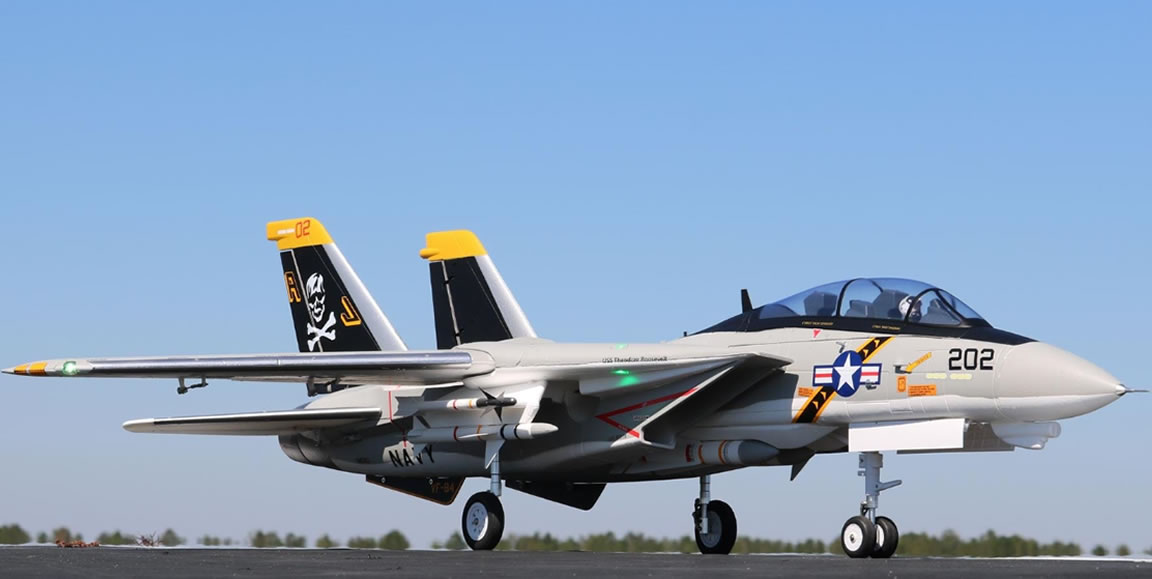

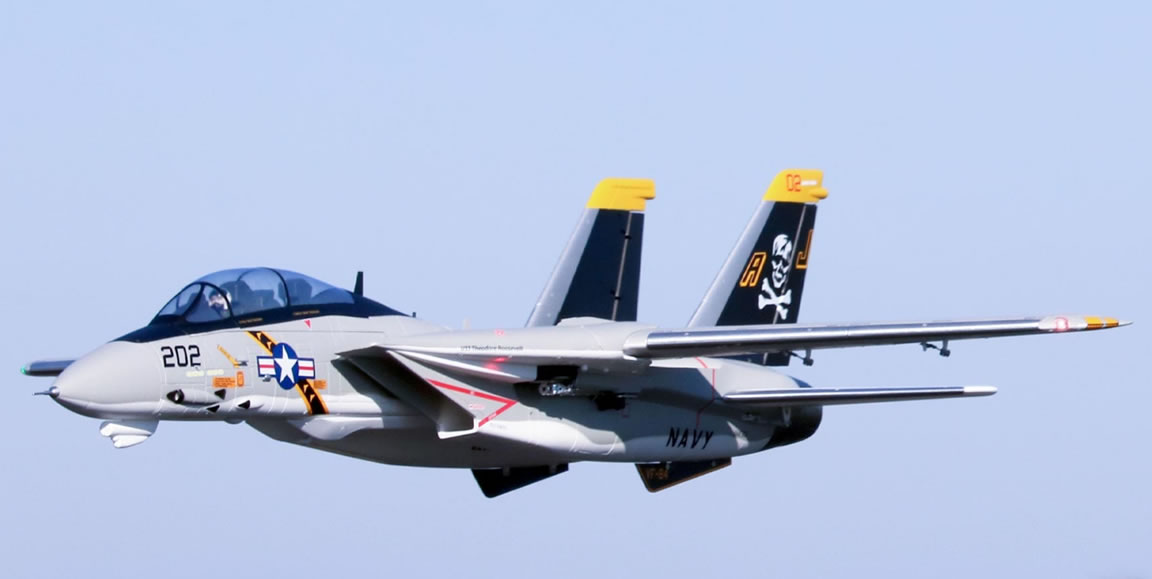

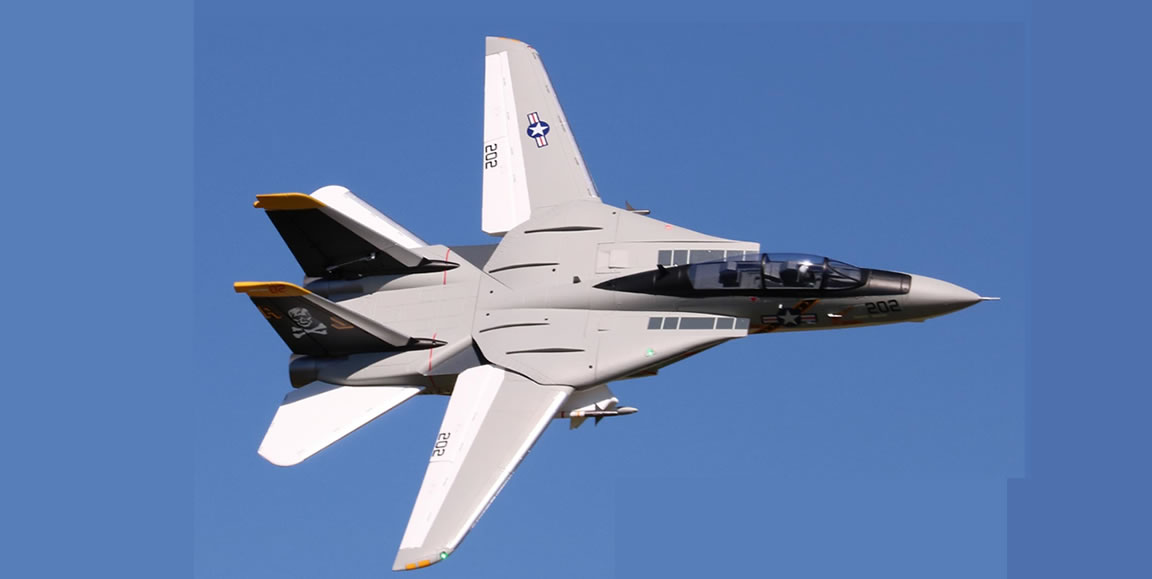

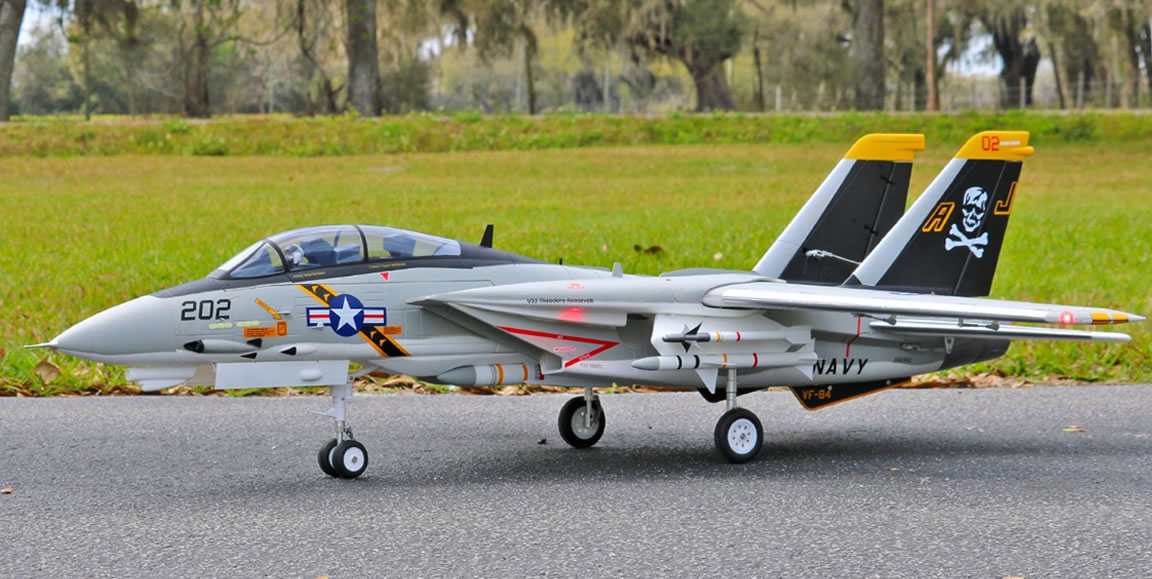

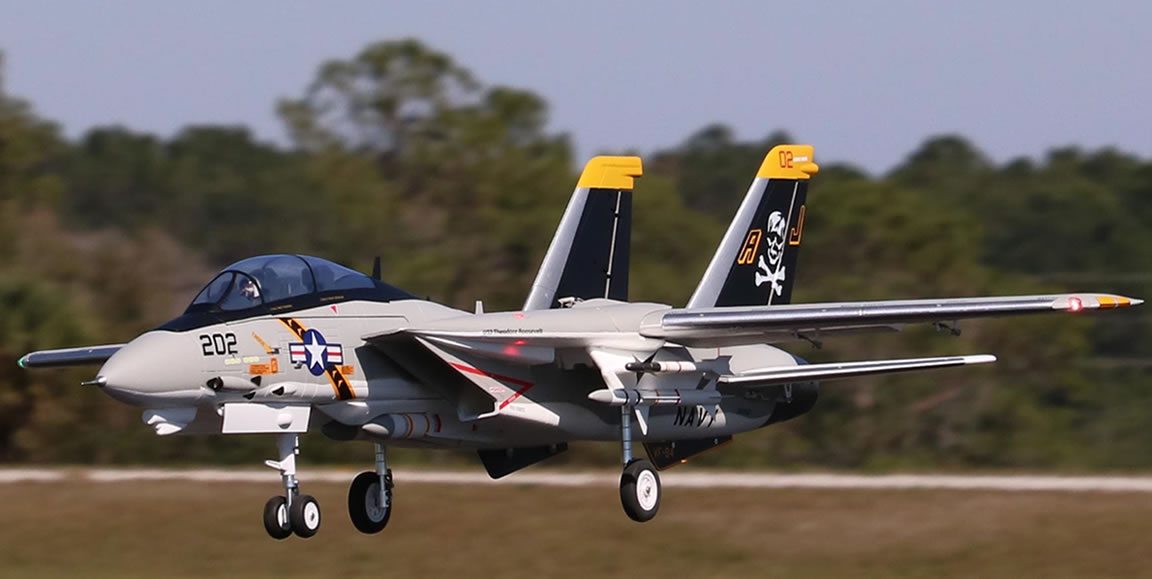

Freewing F14 tomcat twin 64mm EDF

รหัสสินค้า : Freewing F14 tomcat twin 64mm EDF

Features:

  • Fully functional sweeping wings with rigid aluminum wing structure
  • 2x 12 Blade factory-balanced 64mm EDFs with 2x 2949-2500Kv inrunner motors
  • 2x 60A ESC's with thrust reversing
  • E20 Integrated controller with 3/6-axis gyro
  • Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
  • Full-flying horizontal stabilizers
  • 6x Daylight bright LED lights
  • Scale details included such as antennas, pitot tubes, missiles and missile pods
  • Nylon hinges on all control surfaces
  • Removable, magnetic nose cone for convenient transport and replacement

Package Includes:

  • Freewing F-14 Tomcat Twin 64mm EDF Jet PNP RC Airplane
  • 2 units 2949-2500Kv inrunner Motors, EDF,2 units 60A ESCs, retracts, All servos included and installed inside

Requires:

  • 7-9 Channel radio (9 for thrust reversing and gyro modes) - select a minimum 7 channel radio
  • 7-9 Channel receiver (9 for thrust reversing and gyro modes) - select a minimum 7 channel receiver
  • 6 Cell 22.2V 4000-5000 mAh LiPo Battery with EC5 connector -
  • 6 Cell compatible battery charger -

Product Specifications:

AGE LEVEL :14 and up
SKILL LEVEL :Intermediate
BUILD TIME :1 hour

Wingspan

1250mm / 49.2in (extended)

Length

1217mm / 47.9in

Weight

2555g / 90oz (without battery)

Power System

2 x 2949-2500Kv brushless inrunner motors

Speed Control

2 x 60A with Thrust Reversing and joint EC5 Connector

Propeller / EDF

64mm 12-Blade EDF

Servos

  • 9g digital hybrid metal gear standard with 100mm lead :left rudder, right rudder
  • 23g metal gear standard with 200mm lead : left wing sweep
  • 23g metal gear reverse with 200mm lead : right wing sweep
  • 9g digital hybrid metal gear standard with 400mm lead : left flap, right flap
  • 9g digital hybrid metal gear standard with 500mm lead : left aileron, right aileron
  • 9g digital hybrid metal gear standard with 600mm lead : ose gear
  • 17g digital hybrid metal gear standard with 600mm lead : left elevator, right elevator

9g plastic reverse with 700mm lead : nose gear door

Landing Gear

CNC-machined, shock absorbing, retractable landing gear

Required Battery

6S 22.2V 4000mAh to 5000mAh LiPo with EC5 connector (required)

Required Radio

7-9 Channels (9 required for thrust reversing & gyro)

Rudder

Yes

Flaps

Yes

Ailerons

Yes

Lights

Yes

Hinge Type

Nylon

Material

EPO Foam

Skill Level

Intermediate/Advanced

Build Time

1-2 Hours

Recommended Environment

Outdoors
